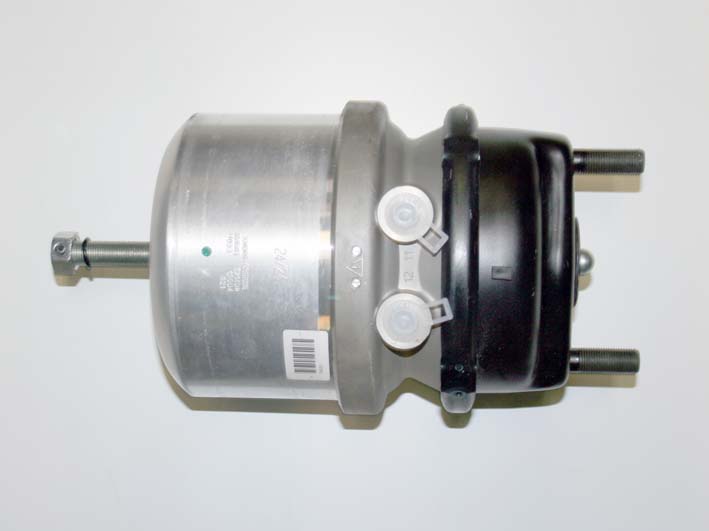

TRISTOP-T20/24-DP-DISC-925.480.010.0, M16x1,5, VOSS pertlovan

FA1059A

(2)T20/24DP DISC DETAILS

20/24HFL3

A6344200218

ZGS001

KNORR-BREMSE

BS9497 II40310F

05031 19005

F0019624 45

                               FA1059A     FA1059B

STROKE                       57/57        57/57

PORT THREAD               M16*1.5    M22*1.5

BOLT THREAD               M16*1.5    M16*1.5

BOLT CENTER                120.7       120.7

PUSH ROD THREAD          Ø16         Ø16

HOLE PUSH ROD LENGTH   105MM     105MM
